Build STAAD Addin using Visual basic script

Overview

• In this tutorial, I’ll show you how to use Visual Basic script to create a STAAD addin
• What is User Tools?
  • STAAD User Tools allows you to extend STAAD functionality using Visual Basic script
  • You can access it from Utilities > User Tools
• Why use this method?
  • Doesn’t require any setup or external tools; it’s built into STAAD
  • Better workflow, since you can’t directly run your script from STAAD
  • It’s older technology with limited functionality, making it more LLM friendly
• I am assuming that:
  • You have basic knowledge of Visual Basic script and know how to create new subs and functions
  • Keep in mind that Visual Basic script is a bit different from Excel VBA; syntax is similar, but VBA has much more functionality

Setup

• Create a new text file with *.vbs extension
• For this tutorial, I am creating Test.vbs file
• Add the sample code below and save the file

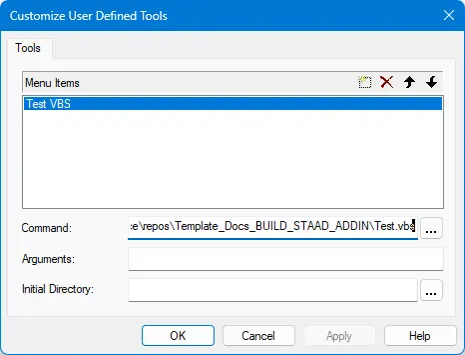

• Open any STAAD model, go to Utilities > User Tools > Configure
• Add a new menu item, name it “Test VBS”, and in the command input, select the Test.vbs file and click OK to save
• Now you can run this code from Utilities > User Tools > User Tools > Test VBS

Sub Main
    MsgBox "Test.vbs is running successfully!", vbInformation, "Test Script"
End Sub

Get Inputs

Input Box

• You can use an input box to get single inputs from the user
• By default, it will return a string, so you have to convert it to double or integer as per your requirements

Sub Main()
    Dim inputValue As String
    inputValue = InputBox("Text", "Input Box")

    MsgBox inputValue, vbInformation, "Input Received"
End Sub

User Form

• More suitable for multiple inputs
• You can refer to this video for more complex code: Modelling Intze Tank Geometry using User Tool in STAAD.Pro

Sub Main()

Begin Dialog ModelInputs 200,140,"Model Inputs" ' %GRID:10,7,1,1
    GroupBox 10,0,180,105,"Geometry Inputs",.GeometryInputsGroupBox
    Text 25,20,70,14,"Length"
    TextBox 100,20,70,14,.LengthTextBox
    Text 25,50,70,14,"Width"
    TextBox 100,50,70,14,.WidthTextBox
    Text 25,80,70,14,"Height"
    TextBox 100,80,70,14,.HeightTextBox
    OKButton 20,110,80,20,.OKButton
    CancelButton 110,110,80,20,.CancelButton
End Dialog

'Create new dialog instance
Dim dlg As ModelInputs
dlg.LengthTextBox = "10"
dlg.WidthTextBox = "5"
dlg.HeightTextBox = "3"

Dim result As Integer
result = Dialog (dlg)

Dim volume As Double
If result = -1 Then
    volume = CDbl(dlg.LengthTextBox) * CDbl(dlg.WidthTextBox) * CDbl(dlg.HeightTextBox)
    MsgBox "Length: " & dlg.LengthTextBox & vbCrLf & _
           "Width: " & dlg.WidthTextBox & vbCrLf & _
           "Height: " & dlg.HeightTextBox & vbCrLf & _
           "Volume: " & volume
End If

End Sub

Generate Model

• You can use this post Automate STAAD model from Excel using OpenSTAAD for the full version

Sub Main
    'Create OpenSTAAD Object
    Dim objOpenSTAAD As Object
    Set objOpenSTAAD = GetObject(, "StaadPro.OpenSTAAD")

    'Add nodes with node IDs 1 and 2
    objOpenSTAAD.Geometry.CreateNode 1, 0, 0, 0
    objOpenSTAAD.Geometry.CreateNode 2, 3#, 0#, 0#

    'Add beam with ID 1 connecting nodes 1 and 2
    objOpenSTAAD.Geometry.CreateBeam 1, 1, 2

    'Create rectangular section
    Dim width As Double, depth As Double
    Dim beamNo As Long
    Dim sectionPropertyNo As Long
    width = 0.3
    depth = 0.3
    beamNo = 1
    sectionPropertyNo = objOpenSTAAD.Property.CreatePrismaticRectangleProperty(depth, width)
    objOpenSTAAD.Property.AssignBeamProperty beamNo, sectionPropertyNo

    'Create fixed support
    Dim supportNo As Long
    supportNo = objOpenSTAAD.Support.CreateSupportFixed

    'Assign support at nodes 1 and 2
    objOpenSTAAD.Support.AssignSupportToNode 1, supportNo
    objOpenSTAAD.Support.AssignSupportToNode 2, supportNo

    ' Clean up
    Set objShell = Nothing
    Set objOpenSTAAD = Nothing
End Sub

Extract Results

• This is sample code to display node results
• I am using fake data to display a report table
• You can use the OpenSTAAD API to extract results as per your requirements
• You can refer to this post for sample code on how to extract results using OpenSTAAD: How to Extract Results from STAAD to Excel Using VBA

Sub Main()
'Create OpenSTAAD Object
Dim objOpenSTAAD As Object
Set objOpenSTAAD = GetObject(, "StaadPro.OpenSTAAD")

Dim reportID As Long, tableID As Long, numRows As Long, numCols As Long

numRows = 5
numCols = 2

' Create report
reportID = objOpenSTAAD.Table.CreateReport("Reports")

' Add table to report
tableID = objOpenSTAAD.Table.AddTable(reportID, "Support Reactions", numRows, numCols)

' Set column headers
objOpenSTAAD.Table.SetColumnHeader reportID, tableID, 1, "Node No."
objOpenSTAAD.Table.SetColumnHeader reportID, tableID, 2, "FY (kN)"

' Fill table with data
Dim i As Long
For i = 1 To numRows
    objOpenSTAAD.Table.SetCellValue reportID, tableID, i, 1, CStr(i + 1)
    objOpenSTAAD.Table.SetCellValue reportID, tableID, i, 2, CStr(i * 10)
Next i

End Sub

Run External Program from STAAD

• You can use this code to run your external program directly from STAAD
• If it’s a Python script, convert it into an exe file and you can run it via STAAD

Sub Main

    'Create OpenSTAAD Object
    Dim objOpenSTAAD As Object
    Set objOpenSTAAD = GetObject(, "StaadPro.OpenSTAAD")

    'Check if model is open
    Dim stdFilePath As String
    objOpenSTAAD.GetSTAADFile stdFilePath, True

    If stdFilePath = "" Then
        'Model is not open; exit sub
        MsgBox "No Active Model Found. Please open a STAAD model and retry.", vbExclamation, "No Active Model"
        Set objOpenSTAAD = Nothing
        Exit Sub
    End If

    'Create Shell object
    Dim objShell
    Set objShell = CreateObject("WScript.Shell")

    ' Get application path
    Dim applicationPath
    applicationPath = "C:\SampleApp\Console.exe"

    ' Construct the command to open the STAAD model
    Dim command
    command = """" & applicationPath & """ """ & stdFilePath & """"

    ' Execute the command to open STAAD.Pro with the specified model
    objShell.Run command, 1, False

    ' Clean up
    Set objShell = Nothing
    Set objOpenSTAAD = Nothing

End Sub

Conclusion

• You can build small tools to assist with your regular tasks using STAAD Visual Basic script since it doesn’t require any setup or admin permission
• I personally prefer not to code using Visual Basic script since it’s quite old, so I usually just use it to call my exe file
• For large model generation or results extraction, running the script can be very slow, so my advice is to minimize STAAD while running your script to speed up execution
• I’ll try to keep this updated with more variations and use cases
